The TS-Z0103 is a dash cam designed specifically for commercial vehicles. It supports up to three cameras operating simultaneously, capturing multi-angle, multi-scenario video footage while driving. Equipped with visual AI capabilities, it supports simultaneous processing of ADAS and DMS functions. It continuously monitors road conditions ahead and promptly issues warnings for collisions, following distance, and lane departure, while also analyzing the driver’s condition inside the vehicle and reminding the driver to stay alert, ensuring driving safety and preventing potential hazards. The dashcam also features incident alerts and one-touch emergency assistance, making it widely applicable in industries such as public transportation, logistics, hazardous materials transport, and school bus management.
No. | Technical Specification | Technical Parameters |
1 | Operating System | Embedded Linux operating system / Chinese / English |
2 | Audio and Video | 1080P/720P/960H/D1/CIF; configurable recording quality levels 1 to 6; synchronized audio and video recording |
3 | Recording and Playback | Recording modes: Auto, Alarm; searchable by channel and recording type |
4 | Software Updates | Local and remote updates via USB flash drive, TF card, or wireless network |

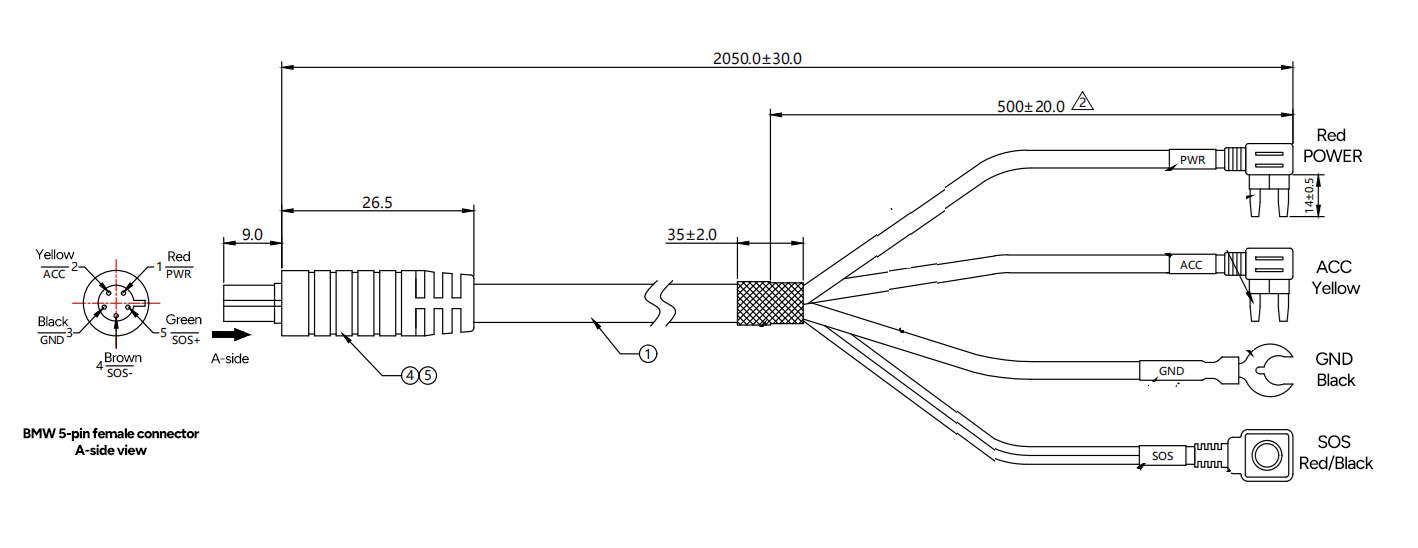

5 | Interfaces | 1 ACC signal channel, 1 one-touch alarm channel, built-in microphone, built-in 2W speaker, 1 TF card slot, 1 micro-SIM slot, 1 micro-USB port, PWR/RUN dual-color indicator light |
6 | Expansion Features | Built-in antenna, BD, CAT1, 2.4 GHz frequency |
7 | Power Input | Less than 10W / DC: 9V–32V |
8 | Operating Temperature | -20 - 70℃ |
9 | Storage Capacity | 1080p: 600 MB/hour/channel (H.265); 1080p: 1200 MB/hour/channel (H.264) |
10 | Dimensions | 125.6*86.6*46.9mm |
