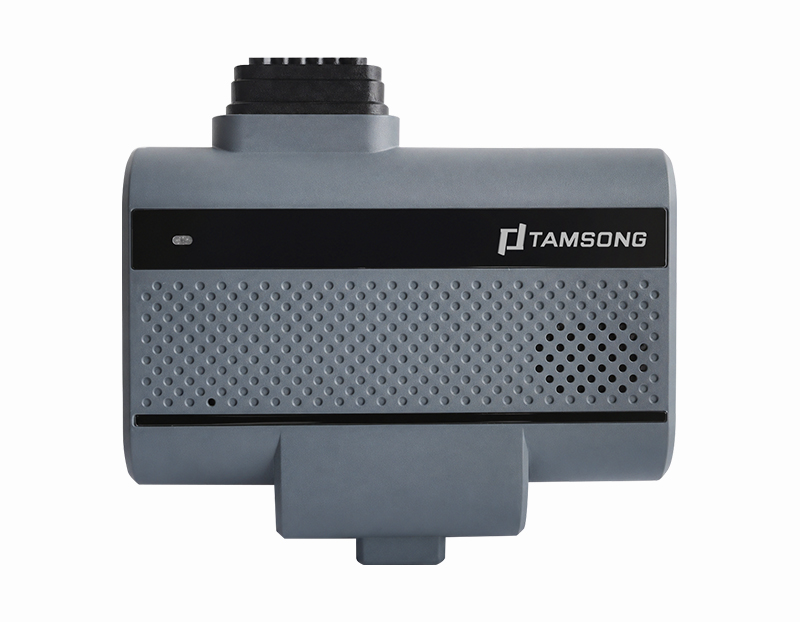

The TS-Z0104 is a dash cam designed specifically for commercial vehicles. It supports up to four cameras operating simultaneously, capturing multi-angle, multi-scenario video footage while driving. Equipped with visual AI capabilities, it supports simultaneous processing of ADAS and DMS functions. It continuously monitors road conditions ahead and promptly issues warnings for collisions, following distance, and lane departure, while also analyzing the driver’s condition inside the vehicle and reminding the driver to stay alert, ensuring driving safety and preventing potential hazards. The dashcam also features event alerts and one-touch emergency assistance, making it widely applicable in industries such as public transportation, logistics, hazardous materials transport, and school bus management.
No. | Technical Specification | Technical Parameters |
1 | Operating System | Embedded Linux operating system / Chinese / English |
2 | Audio and Video | PAL/NTSC, 720P / 960H / D1 / CIF (single channel supports 1080P), 4 channels with flexible configuration for 720P real-time |
3 | Recording and Playback | Automatic, alarm-triggered; searchable by channel and recording type; multi-channel playback |
4 | Software Updates | Manual, automatic, and remote updates via USB flash drive, TF card, or wireless network |

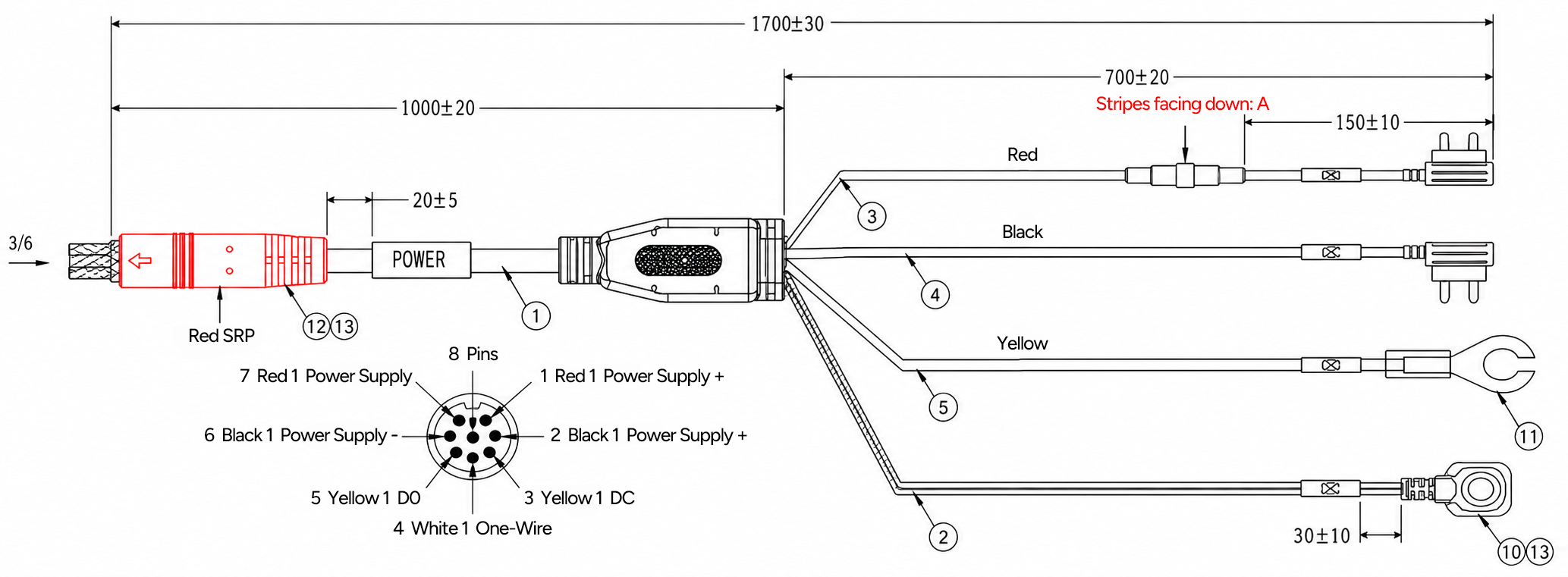

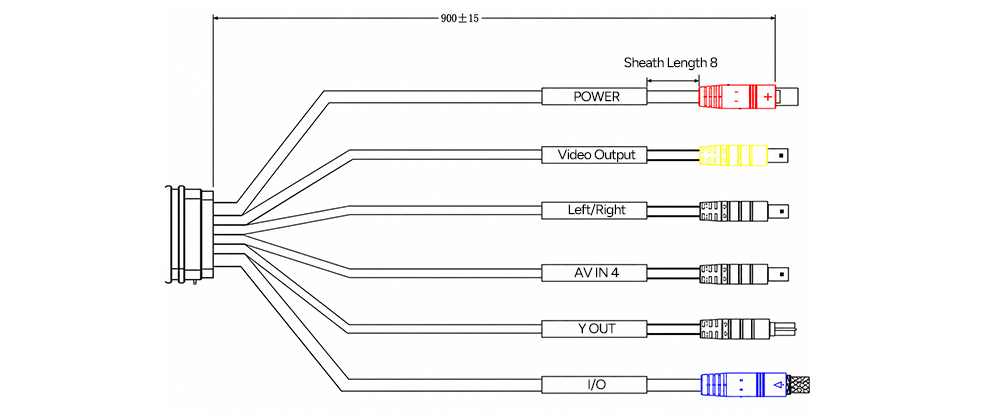

5 | Interfaces | 3 x 4-pin BMW connectors; 1 x 4-pin BMW video output; 4 inputs and 1 output capable of directly driving relays; 2 TF card slots; 1 Micro USB port; 1 ACC signal; PWR/RUN dual-color indicator light; 2 RS232 ports; 1 RS485 port; 1 Micro SIM slot |
6 | Expansion Features | Built-in ceramic antenna, GPS+BD, supports 4G full-network compatibility (CAT4), 2.4 GHz frequency |
7 | Power Input | 10W；DC：8V~36V |
8 | Operating Temperature | -20 - 70℃ |
9 | Storage Capacity | 720p: 270 MB/hour/channel (H.265); 720p: 510 MB/hour/channel (H.264) |

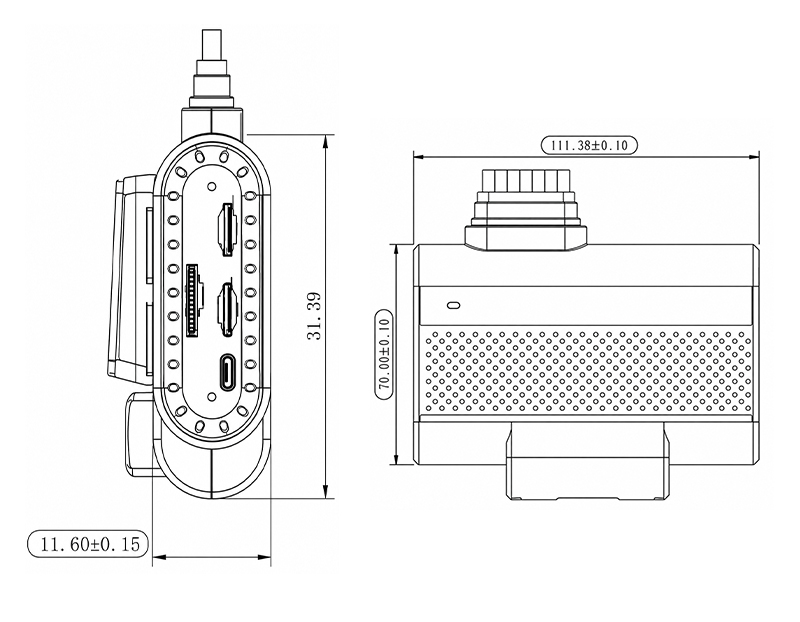

10 | Dimensions | 111.38*87.3*27mm |
