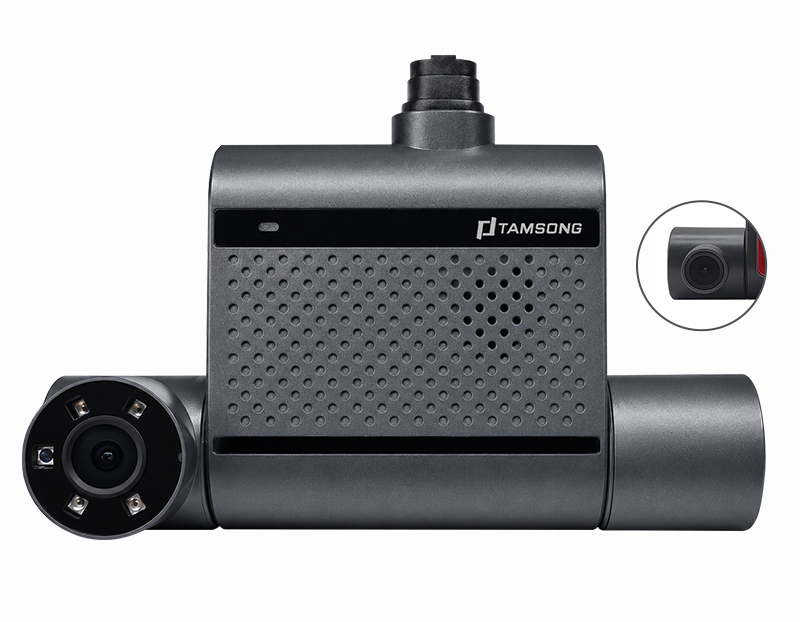

The TS-Z0102 is a dash cam designed specifically for commercial vehicles. It supports up to two cameras operating simultaneously, enabling multi-angle, multi-scenario video recording while driving. Equipped with visual AI capabilities, it supports simultaneous processing of ADAS and DMS functions. It continuously monitors road conditions ahead and promptly issues warnings for collisions, following distance, and lane departure, while also analyzing the driver’s condition inside the vehicle and reminding the driver to stay alert, ensuring driving safety and preventing potential hazards. The dashcam also features incident alerts and one-touch emergency assistance, making it widely applicable in industries such as public transportation, logistics, hazardous materials transport, and school bus management.
No. | Technical Specification | Technical Parameters |
1 | Operating System | Embedded Linux operating system / Chinese / English |
2 | Audio and Video | 1080P/720P/960H/D1/CIF; configurable recording quality levels 1 to 6; synchronized audio and video recording |
3 | Recording and Playback | Recording modes: Auto, Alarm; searchable by channel and recording type |
4 | Software Updates | Automatic updates, remote updates via USB flash drive, TF card, or wireless network |

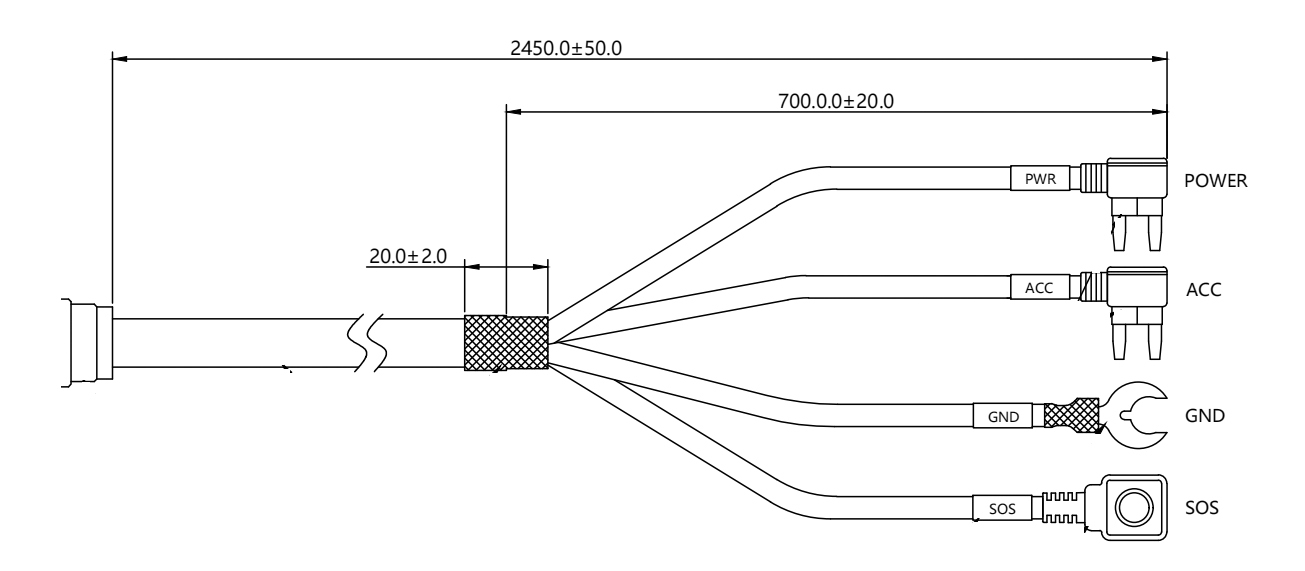

5 | Interfaces | 1 ACC signal input, 1 one-touch alarm input, built-in microphone, built-in 2W speaker, 1 TF card slot, 1 micro-SIM slot, 1 micro-USB port, PWR/RUN dual-color indicator light |
6 | Expanded Features | Built-in ceramic antenna; GPS+BD+GLONASS; supports 4G all-network compatibility (CAT1); Wi-Fi; 2.4 GHz frequency |
7 | Power Input | Less than 5W |
8 | Operating Temperature | -20 - 70℃ |
9 | Storage Capacity | 1080p: 600 MB/hour/channel (H.265); 1080p: 1200 MB/hour/channel (H.264) |

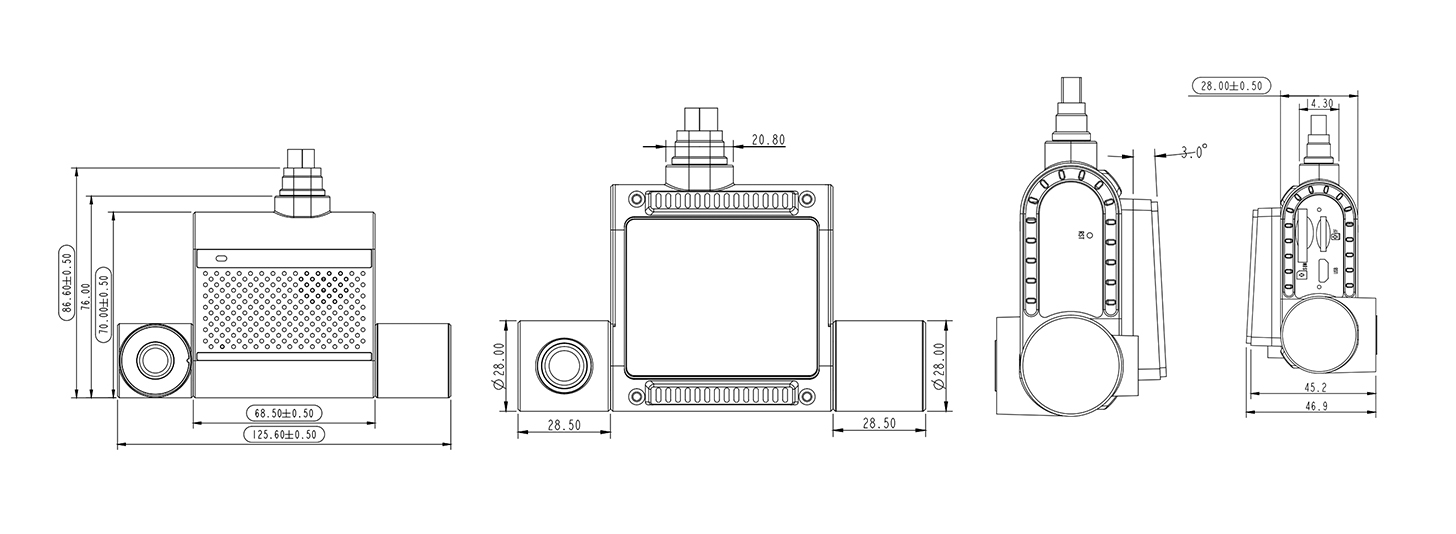

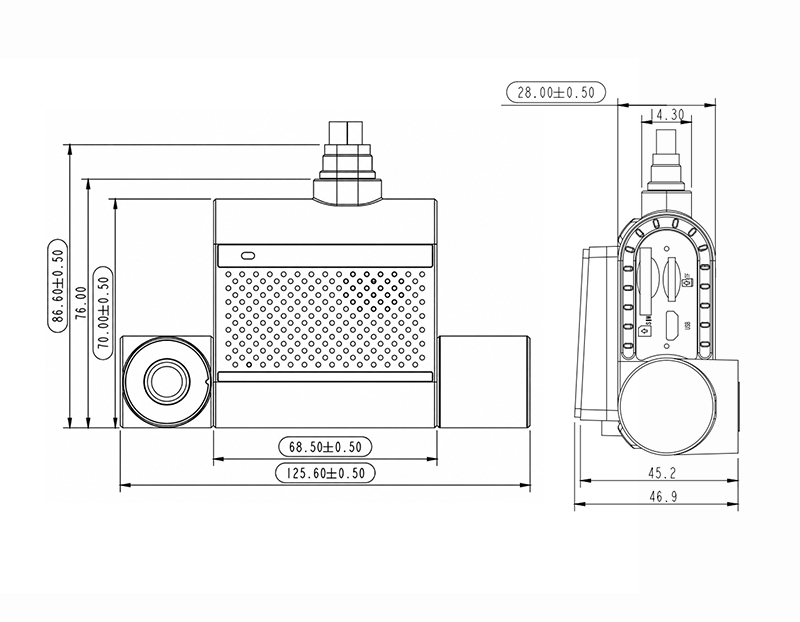

10 | Dimensions | 125.6*86.6*46.9mm |
