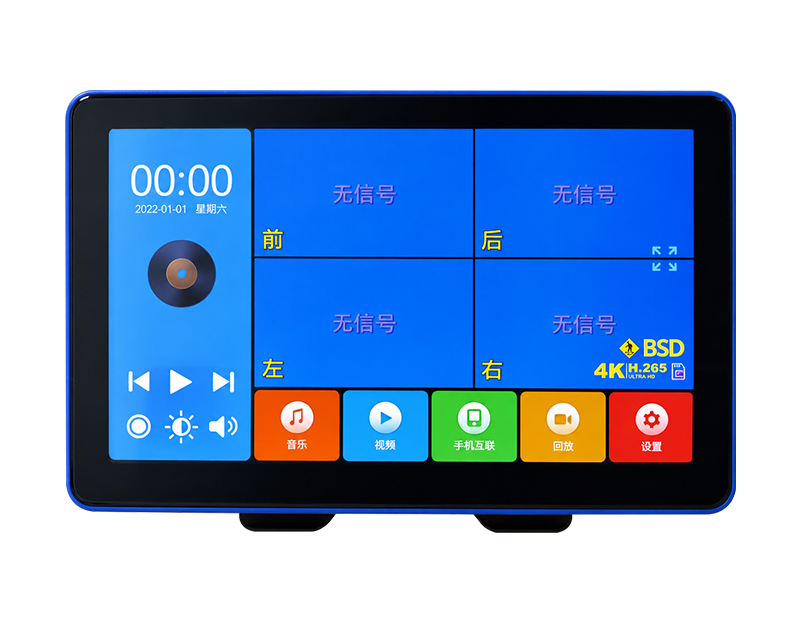

The TS-DP0102 In-Vehicle Terminal is a four-channel all-in-one device that uses four high-definition cameras installed inside and outside the vehicle to simultaneously capture footage of the vehicle’s surroundings. This footage is transmitted in real time to the terminal, where AI-powered deep learning identifies pedestrians in blind spots around the vehicle, marks them, and issues voice alerts. The system also provides alerts for fuel theft after the vehicle has been parked. With this system, drivers can clearly see obstacles and pedestrians around the vehicle, effectively reducing incidents such as scrapes and collisions. It also records driving footage to help resolve disputes over minor paint scratches.
No. | Technology Name | Technical Specifications |
1 | System Operation | Multiple languages including Simplified Chinese, Traditional Chinese, English, Russian, Spanish, French, German, Japanese, and Korean; graphical menu interface; touchscreen operation |

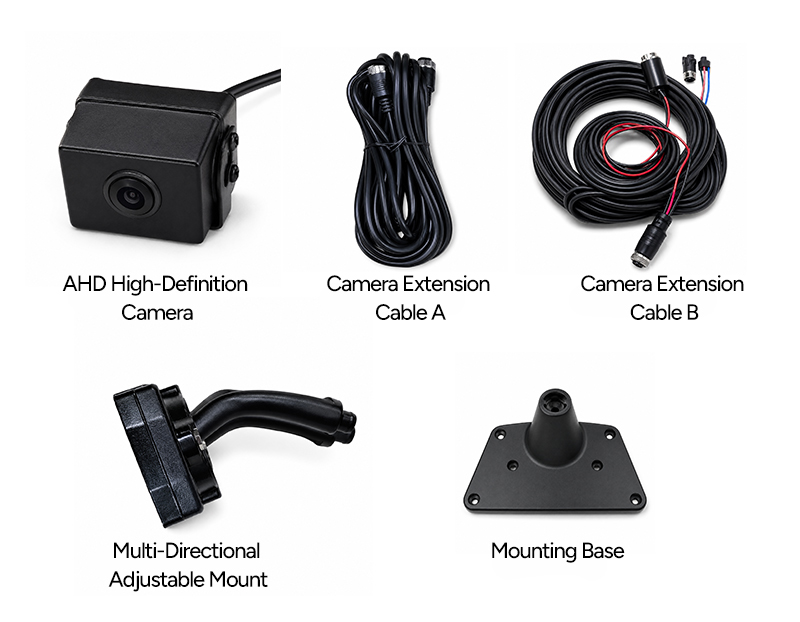

2 | Video Input | 4-channel AHD 1080p HD video input; default recording upon startup; single-channel 720p H.264 video; 4 video streams saved separately |
3 | Video Display | 10.1-inch HD IPS screen, 1280×800 resolution; 10 multi-view display modes; local playback for on-demand viewing; configurable recording intervals of 1 minute, 5 minutes, or off |
4 | AI Recognition | AI recognition across all 4 video channels; configurable alarm zones |
5 | Local Entertainment | Supports playback of local music from a USB drive with multiple looping options; supports playback of local videos from a USB drive; supports full-screen playback |
6 | Triggered Display | Automatically switches to the corresponding camera view |
7 | Parking Monitoring | Selectable monitoring recording durations: 1, 3, 5, 8, or 24 hours |
8 | SD Card Recording Storage | CLASS 10 U1; minimum 64GB, supports up to 256GB |
9 | Audio Features | Supports microphone recording and voice control; can be disabled via the menu |
10 | Power Input | Supports a wide voltage range of 9V–36V; features automotive-grade power protection circuits against surges, reverse connection, and overvoltage, suitable for various vehicle power environments. |
11 | Total Power Consumption | ACC detection wire, 4-channel recording: less than 10W (with screen display and 4-camera recording) |

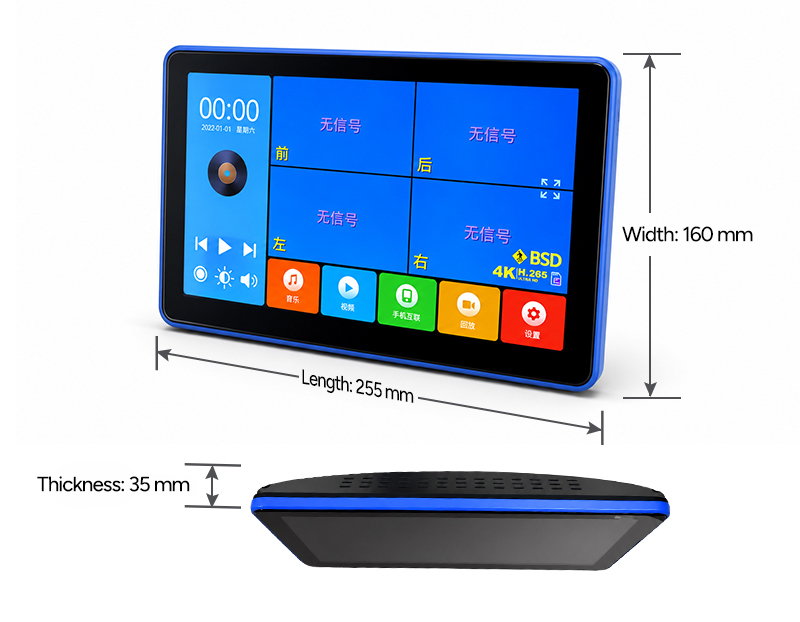

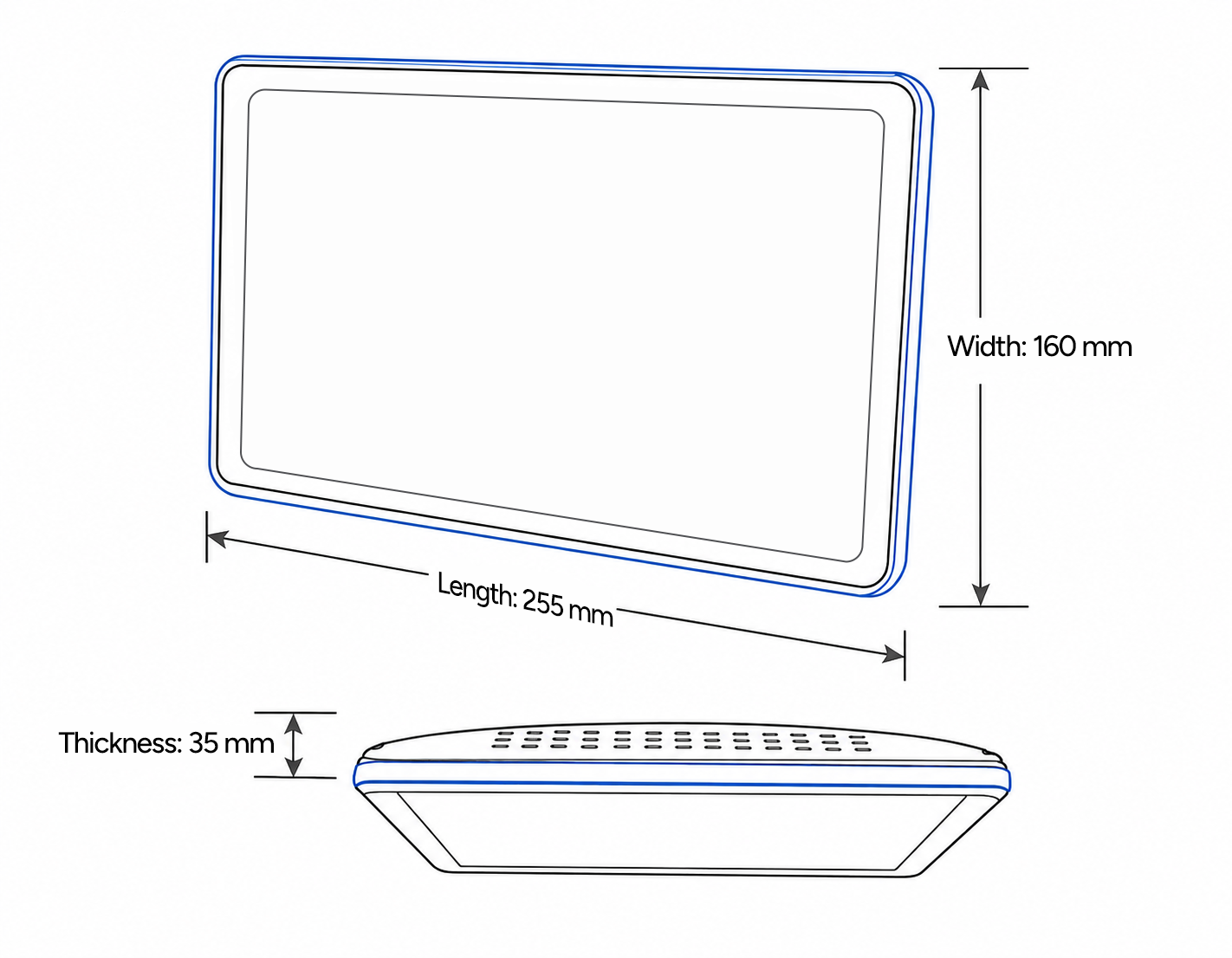

12 | Dimensions | 255mm*160mm*35mm |
13 | Operating Temperature | -20~65℃ |
