The TS-DP01 Pro is a comprehensive in-vehicle active safety product featuring an integrated display that combines satellite positioning, video surveillance, and active safety functions. This product meets the needs of fleet monitoring, production and operations management, command and dispatch, driving safety, and the standardization of driving behavior. Based on advanced deep learning technology, the active safety features—including the Advanced Driver Assistance System (ADAS), Driver Monitoring System (DMS), Lane Change Assist (LCA), and Blind Spot Detection (BSD)—utilize intelligent algorithms that can be applied to complex driving scenarios to enhance driving safety and efficiency while improving the overall user experience. The integration of artificial intelligence into the driving process further helps standardize drivers’ safe driving behavior.

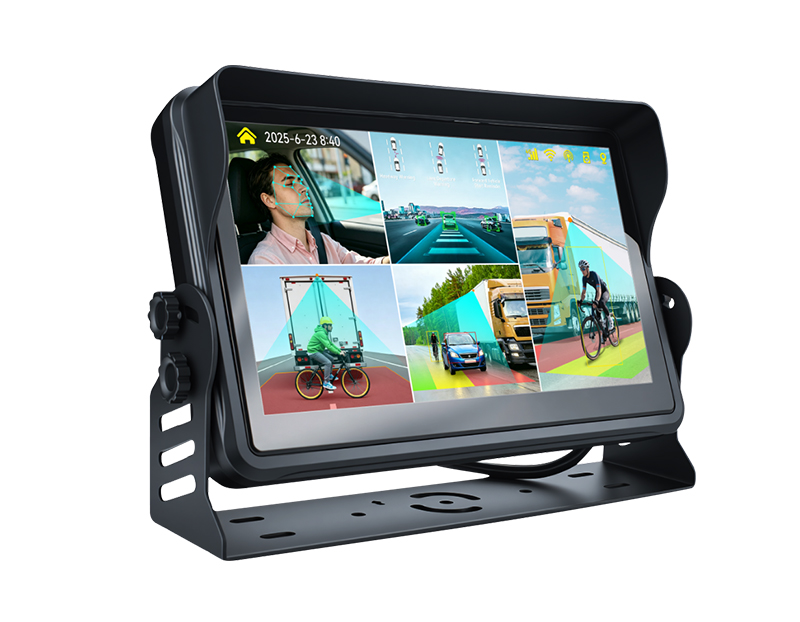

The product features a highly integrated design, with a high-definition display, touchscreen, and core motherboard all built into a single unit, making installation and operation more convenient.
⭐ Built-in ADAS, DMS, BSD, and facial recognition algorithms; camera channels can be freely configured to select any algorithm.
⭐ Linux operating system;
⭐ Supports 4G connectivity and satellite positioning;
⭐ Supports 5-channel 1080P video recording
⭐ Supports 808/905+1078 ministry standards;
⭐ Supports real-time video, historical video playback, emergency alerts, TTS text message dissemination, and other functions;
⭐ Supports alerts for sudden acceleration, sudden deceleration, and sharp turns, as well as collision alerts
⭐ Supports low-power sleep mode after ACC OFF, with remote wake-up capability
⭐ Supports parking monitoring mode after ACC OFF, with pedestrian detection and alerts in any designated area
⭐ Supports time-lapse recording after ACC OFF
⭐ Voice support for intercom and monitoring
⭐ Supports dual IP reporting
No. | Technology Name | Technical Specifications |
1 | User Interface | Supports app-based user interface, web-based user interface, and touchscreen parameter configuration; |
2 | CPU | 32-bit RISC CPU 1GHz，1T NPU |

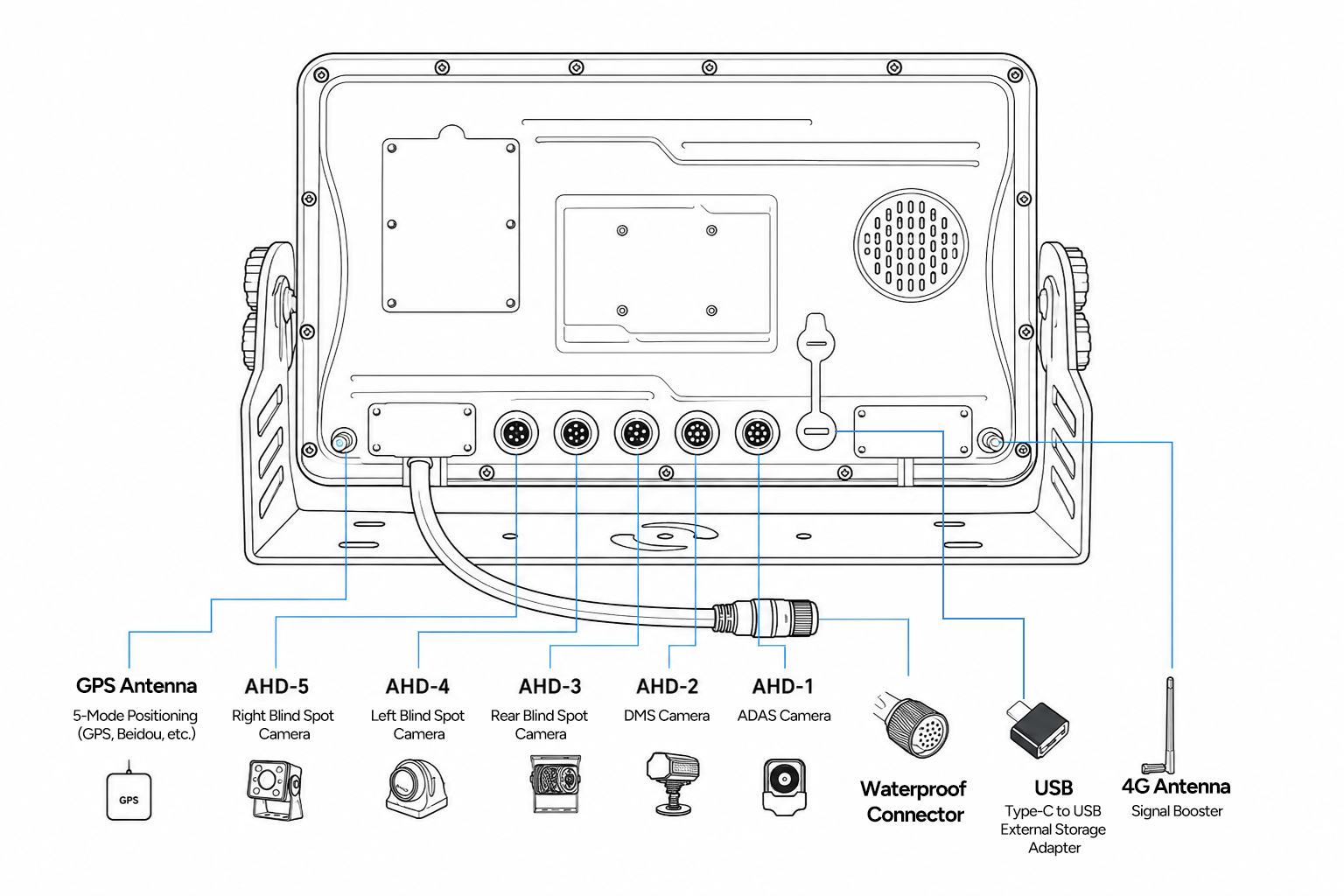

3 | Video Input | 5 AHD channels at 1080P/720P |
4 | Video Output | Built-in 720P HD display |
5 | Preview Function | Single-channel and 5-screen tiled preview; supports manual/event-triggered full-screen display |
6 | AI Algorithms | ADAS/DSM/BSD |
7 | Recording Modes | Default automatic recording; supports ignition-triggered recording, alarm-triggered recording, time-lapse recording, and alarm clips |
8 | Communication Interfaces | 2 RS232 ports; expandable to support card readers, fuel level sensors, etc. (slots reserved on the motherboard) |
9 | Audio Recording Mode | Synchronized audio and video recording |
10 | Operating Environment | -20℃to +70℃ |
11 | Security Management | Password-protected access; web-based menu under development |

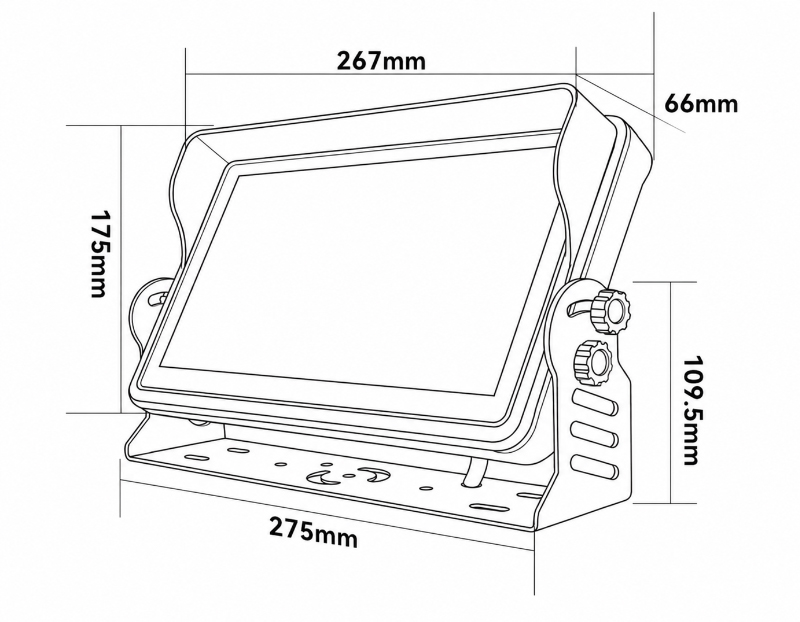

12 | Dimensions | 26.7*17 .5*6 .6 (CM) |
13 | Net Weight | 1.45 (KG) |
