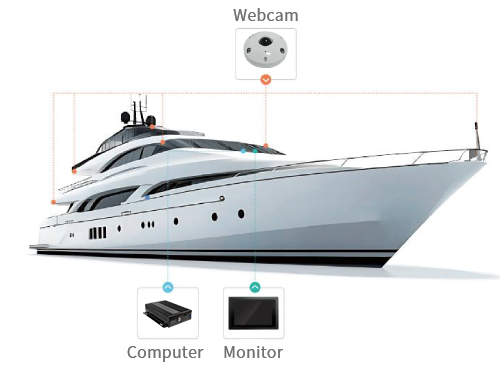

The system comprises multiple surround-view cameras. The camera feeds are transmitted to a host computer for image processing, and users can view the 360° panoramic view on the cockpit display. By installing the 360° Surround View System, vessels can intuitively perceive the aquatic environment during navigation and port operations, ensuring safe cargo handling, boarding, and disembarkation. This effectively protects the safety of crew members, reduces the risk of accidents, minimizes vessel damage and repair costs, mitigates environmental pollution caused by accidents, improves operational efficiency, and reduces delays in vessel operations.
● Dual quad-core AI modules, delivering up to 6 TOPS of computing power
● Built-in AI algorithms supporting all-around blind spot detection
● Seamless switching between 3D and 2D views, with flexible AVM display options
● IO signal synchronization (turn signals for left/right turns and reverse)
● Real-time video transmission with low latency
● Supports firmware updates and live streaming
● Compatible with various vessel types, capable of covering vessels at depths of up to 30 meters (100 feet)
Project | Device Specifications | Performance Specifications |
Protocol | Communication Protocols | CAN, Ethernet |
System | Operating Languages and Systems | Chinese, English, Linux |
Core Board | CPU | Quad-core ARM + Quad-core ARM |
GPU | G610 | |
NPU | 6TOPS | |
RAM | 8GB | |
ROM | 32GB | |
Video Input/Output | Image Compression Standards | H264、H265 |
Video Input | 6–8 1080p cameras | |
Video Output | 1 HDMI output | |
Resolution | 1080P | |
Audio Input/Output | None | |
Recording | Storage Media | microSD card, USB external hard drive |
Recording Modes | Recording upon startup | |
Video Playback | Local playback | |
Power Supply/Power Consumption | Power Input | DC: 12/24V battery system, 9–32V input |
Power Consumption | Less than 15W | |
Physical Interfaces | Ethernet | 1 WAN + 7 LAN Gigabit ports |
USB | 2*USB2.0+1*USB3.0 | |
HDMI | 1x HDMI output | |
SD Card | 1x SD card slot | |
Type-C | Full-system upgrade | |
Mechanical Protection | IP54 | |
Operating Environment | Temperature | -25℃ -- +65℃ |
Humidity | 20-90%RH | |
Software Updates | Supports local USB flash drive and SD card upgrades, as well as remote upgrades | |
