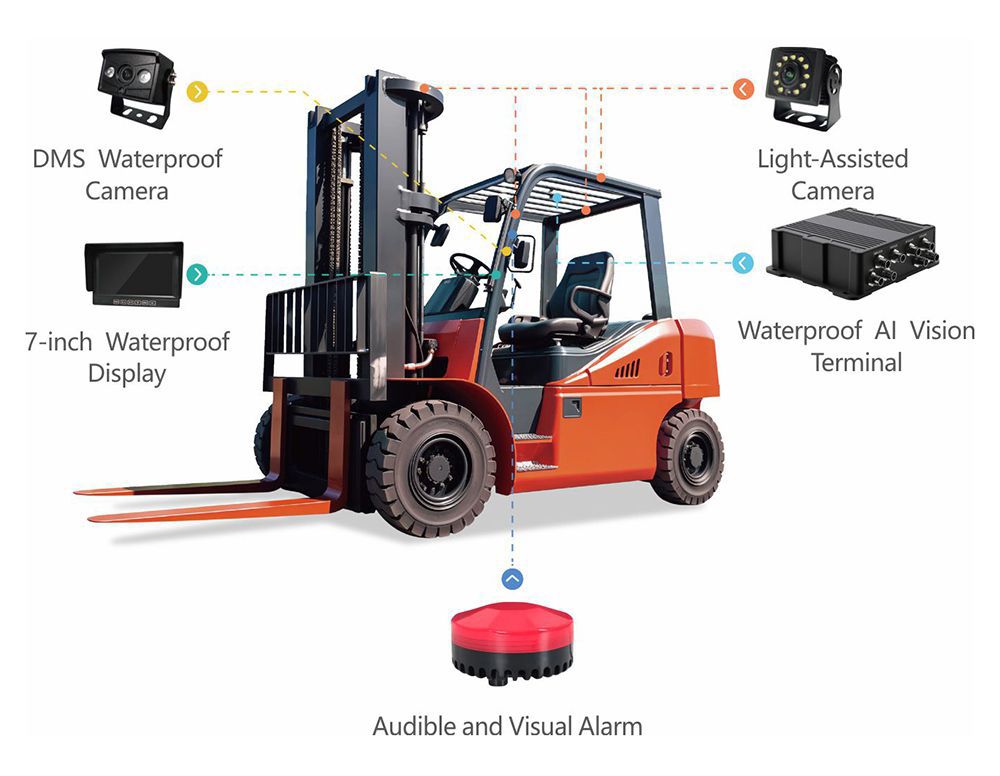

During forklift operations, stacked cargo can obstruct the driver’s view. Even a momentary lapse in attention can result in collisions and equipment damage, and in severe cases, pose a risk to personal safety. The safety monitoring system provides real-time alerts when potential collision risks are detected, thereby reducing accidents caused by blind spots. When personnel enter hazardous areas, the system issues voice alerts and limits throttle speed to remind the driver to watch out for pedestrians. DMS cameras provide real-time detection (distractions, phone use, smoking, seatbelt, hard hat) with audio and visual alerts. CAN data acquisition and processing track vehicle GPS location, speed, load, operational mileage, duration, and status. The camera’s fill-light function enhances image quality and reduces interference during driving in dark environments. Flashing lights and audible alerts warn personnel entering the vehicle’s danger zone.
1. 4G/Wi-Fi enables data transmission, parameter configuration, facial recognition data distribution, remote updates, and the upload of alarm information and attachments.
2. GPS module for positioning, supporting geofencing and route playback functions.
3. Supports 4 channels of 1080P cameras and 1 channel of 720P DMS camera AHD input; 1 channel of AHD video output; The 7-inch waterproof display shows real-time front, rear, left, and right views, along with crew member locations, driver view, speed, driving duration, seatbelt status, time, and alarm icons;
4. Features a driving recorder function, supporting 1 TB storage on a single TF card; built-in supercapacitor prevents data loss due to unexpected power outages;
5. Facial recognition; detection and recording of abnormal driver behavior (eyes closed/yawning, distraction, smoking, phone use, camera obstruction, seatbelt, and helmet detection); BSD warning zone range and parameter configuration via the app;
6. Supports seatbelt detection and alerts for unfastened seatbelts; supports speed sensors for real-time speed detection and speeding alerts; supports seat position sensors for “do not leave the seat during operation” detection; Supports pedestrian detection and alerts; Equipped with IO/485/232/CAN communication ports; supports local USB flash drive/SD card updates; OTA updates
7. Supports expansion of electronic throttle speed limiting, radar, and other functional applications;
8. External audible and visual warning device with adjustable volume;
System Specifications | Technical Specifications |
System | linux |
Language | Chinese, English |
Video Input | 5 AHD HD inputs, AHD 1080P/720P |
Video Output | 1 AHD HD output, AHD 1080P/720P |
Audio Output | 2 audio outputs (alarm speaker output, audio output for audible and visual alarm) |
Storage Media | Primary storage: Vibration-resistant TF card design; supports up to 1TB per card |
Recording Mode | Recording upon startup |
Video Playback | Supports local playback, PC playback, and web-based playback |
Positioning Module | GPS/BD、4G、WIFI |
Video Encoding | H.264 encoding |

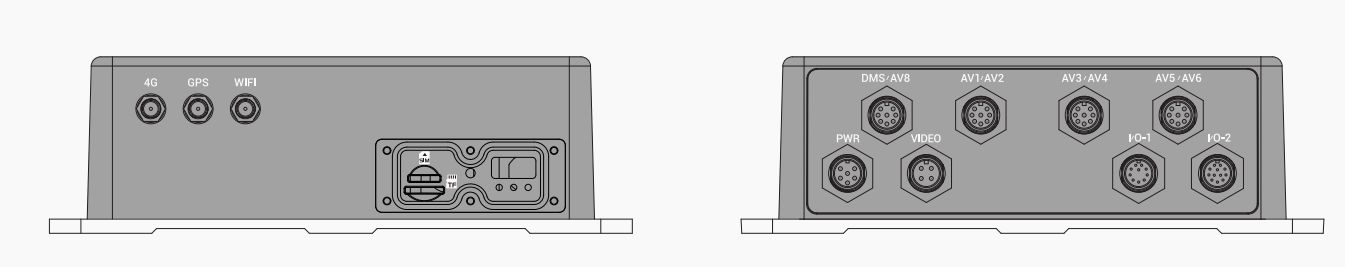

Peripheral Interfaces | 1 speaker interface, 1 audible and visual alarm interface, 2 RS485 aviation-grade connectors |
Dimensions and Weight | Dimensions: 185 mm (L) x 160 mm (W) x 56 mm (H) |
Device Protection | IP67 waterproof |
Operating Temperature | -30℃- +85℃ |
Humidity | 15%-95%RH |

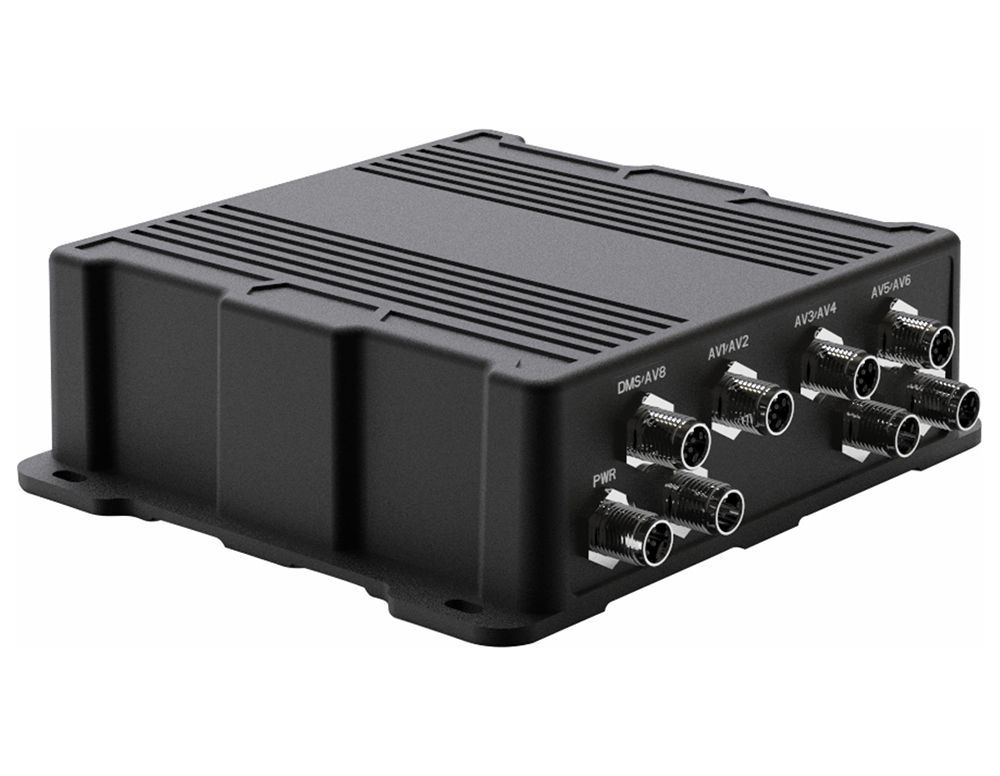

Collision Avoidance Unit | 5 AHD camera inputs, 1 HD AHD video output, supports 4-channel BSD blind spot pedestrian detection and driver behavior monitoring, with active voice alerts |
Video Cable Harness | Front, rear, left, right, and DMS cameras |
Power Cable Harness | Power supply and audible/visual alarm |
