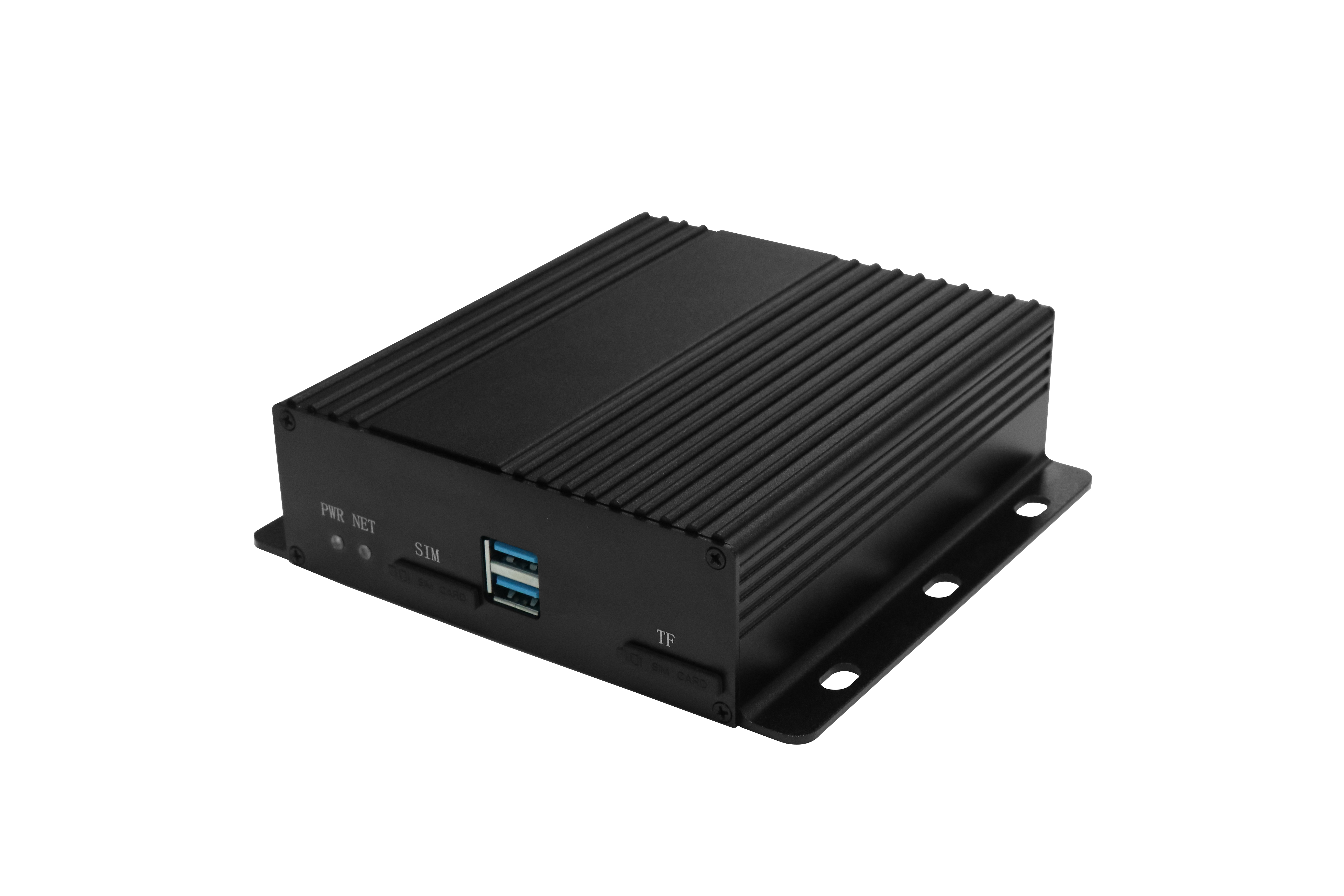

TS-901B AI Visual Intelligent Terminal with real-time fault tracking, remote parameter query setting and other intelligent operation and maintenance functions of terminal equipment, is a set of satellite positioning, video monitoring and AI intelligent algorithms as one of the high-priced visual intelligent terminals. ai visual functions: face recognition, DMS driver monitoring, BSD pedestrian/vehicle blind spot detection and 4 Road or 6-way 360 ° AVM panoramic splicing, infrared thermal imaging camera, vehicle peripheral environment and blind spot for coverage, BSD early warning system pedestrian detection visual algorithm, when there are pedestrians and obstacles in the alarm zone around the vehicle, active voice alarm reminder, the device supports 8-way camera input;
supports IO signal/Ethernet/RS485/RS232/USB/CAN communication interface, can be connected to the It supports IO signal/Ethernet/RS485/RS232/USB/CAN communication interface, and can be connected to peripheral radar obstacle detection. Vehicle networking function: support vehicle CAN information acquisition and processing, vehicle GPS positioning, speed, load, operating mileage statistics, time statistics, status information statistics.
360°AVM panorama: support customized development;
AI function: support face recognition, DMS (eyes closed/yawning fatigue, sunglasses, distraction, smoking, phone call, driver abnormality, seatbelt, helmet recognition), 4-channel BSD blind zone monitoring system,, algorithmic area calibration;
Positioning: supports BD/GPS dual-mode high-precision positioning, electronic fence;
Wireless module: supports 4G full grid communication/expandable 5G, WIFI 4/6, Bluetooth;
Power supply: Carry 9~36V low voltage or 40~120 high voltage motorcycle input, with ⽋ voltage/short circuit/reverse circuit protection; support intelligent power management identification, low power automatic shutdown, low power consumption off;
Video: Support 8-way 1080P or 720P camera AHD input; support 1-way CVBS/AHD N system/P system output, 1-way HDMI video output;
Data storage: supports 1 TF 512G storage, new national standard H.264, H.265 encoding; built-in super capacitor, to avoid abnormal power failure data loss.
Communication interface: supports IO signal/Ethernet/RS485/RS232/USB2.0/USB3.0/CAN communication interface, which can be connected to external peripherals such as fuel, weight, speed, etc., and CAN collects/links data from vehicle controller;
Voice alarm: support horn, sound and light alarms
Support real-time fault tracking, parameter remote query setting, etc;
Built-in G-Sensor, real-time monitoring of the vehicle, support for rapid increase, rapid decrease, rapid turn alarm, support for rollover, collision alarm;
Equipment OTA upgrade, parameter downlaod.
Comply with the standard: applicable to the Ministry of Transportation: JT ∕T 808-2019, JT ∕T 1078-2016 vehicle-mounted video communication protocol Reference: JT ∕T 1076-2016 vehicle-mounted video terminal technical requirements
Item | Equipment parameters | Performance indicators |
Protocols | Communication Protocols | JT/T 808-2019，JT/T 1078-2016《Agreement on Video Communication for Satellite-based Positioning System for Road Transport Vehicles》 |
Video Input and Output | Video format | PAL/NTSC |
Standard for compressing images | H.264/H.265 1~30 frames | |
Video Input | 8 x M12-4 Airline Header Interface Video Inputs, DMS 720P | |
Video Output | 1 Channel HD AHD/CVBS M12-4 Aerial Header Output, 1 Channel HDMI Output | |
Resolution (of a photo) | Digital HD 720P/1080P optional, main stream video recording, sub-stream 4G/wifi network transmission | |
Audio Input/outputs
| Audio Input | 1 DSM audio input or microphone |
Audio Output | 1 Audio Output | |
Videorecord | Storage medium | Main memory: TF card vibration-proof design, single card supports up to 512G slave memory: |
Video replay | Support local playback, PC playback analysis software playback | |
Satellite positioning | GPS/Beidou | Support GPS positioning, GPS/BeiDou dual-mode positioning |
Communication module | 4G | Full Netcom/Expandable 5G communication |
Gyros | G-sensor | Built-in 6-axis gyroscope to collect vehicle status information |
Car control | Relay output | Support 1 way normally open and normally closed connection, can control the ignition ACC, can be connected to 9-120V voltage, 16A current |
Power supply/consumption | Power Input | DC: 9V to 36V low voltage power supply or 36V to 120V high voltage power supply. |
Power output | External device power supply: 1 channel 12V/200mA, 1 channel 5V/500m | |
Mainframe Power Consumption | Less than 12w | |
Physical interface | Communication interface | Supports 3 IO signal inputs, 3 IO outputs. 2 RS232, 2 RS485, 1 100Gb Ethernet, 1 USB2.0, 1 USB3.0, 1 CAN communication interface, 1 speed sensor, 1 IR signal interface, 8 AHD video inputs.1 CAN communication interface, 1 speed sensor, 1 infrared signal interface, 8 AHD video inputs |
Horn (automobile etc) | External | 1 speaker port for external audible and visual alarms |
Operating environment | Operating temperature | -30℃- +75℃ |
Operating humidity | 20%-90%RH | |
Software upgrade | Support local U disk/TF card upgrade; OTA remote upgrade | |
Parameters issued | Supports remote device parameter issuance | |
