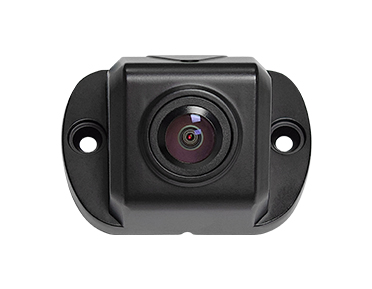

● 720P HD, 200-degree wide-angle camera. ● Excellent environmental adaptability and operational stability. ● Clear, distortion-free rearview images with no color cast.
1. Scope of Application
Used for in-vehicle cameras, including the design, production, testing, and acceptance of panoramic imaging systems.
2. Product Components

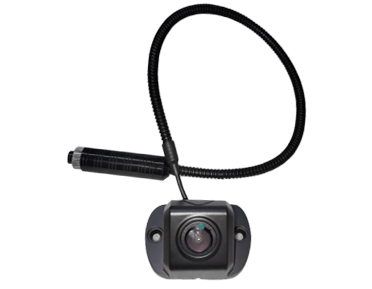

Camera unit configuration: Front, rear, left, and right: Bus panoramic camera housing, 0.5-meter aviation-grade lead wire (market standard, lead wire includes waterproof gasket), AHD, 12V, P-type, 200-degree horizontal wide-angle.
Serial Number | Item | Description | Serial Number | Item | Description |
1 | Image Sensor | 1/2.9“ CMOS sensor | 14 | Minimum Illumination | 0.05Lux@F1.2 |
2 | Video Format | Resolution | 15 | Camera Horizontal Field of View | 200° |
3 | Camera Resolution | 720P（1280*720） | 16 | Camera Vertical Field of View | 130° |
4 | Camera Frame Rate | 720p@25fps | 17 | Power On/Off Test | 500 cycles at 2-second intervals with no system crashes or image abnormalities |
5 | Camera Aperture | F=1.5 | 18 | Operating Power Supply | 16×16 mm dual-layer |
6 | Lens Configuration | 3G 3P | 19 | Dimensions | 75mA±10mA |
7 | Video Range | 1.0VPP @75Ω | 20 | Rated Operating Voltage | 12V |
8 | Day/Night Mode | Full Color without IR Cut Filter | 21 | Rated Operating Current | 40mA |
9 | White Balance | Auto White Balance | 22 | Operating Voltage Range | 6-18VDC |
10 | Video Signal | AHD | 23 | Operating Temperature | -20~70℃ |
11 | Noise Reduction | 3D Noise Reduction | 24 | Storage Temperature | -30~75℃ |
12 | Operating Temperature | -20°C to 70°C: Continuous operation for 8 hours and power cycling No abnormalities | 25 | Image Quality Guaranteed Temperature | -20~65℃ |
13 | Operating Humidity | 10%~90% | 26 | Ingress Protection Rating | IP67 (camera module) |
